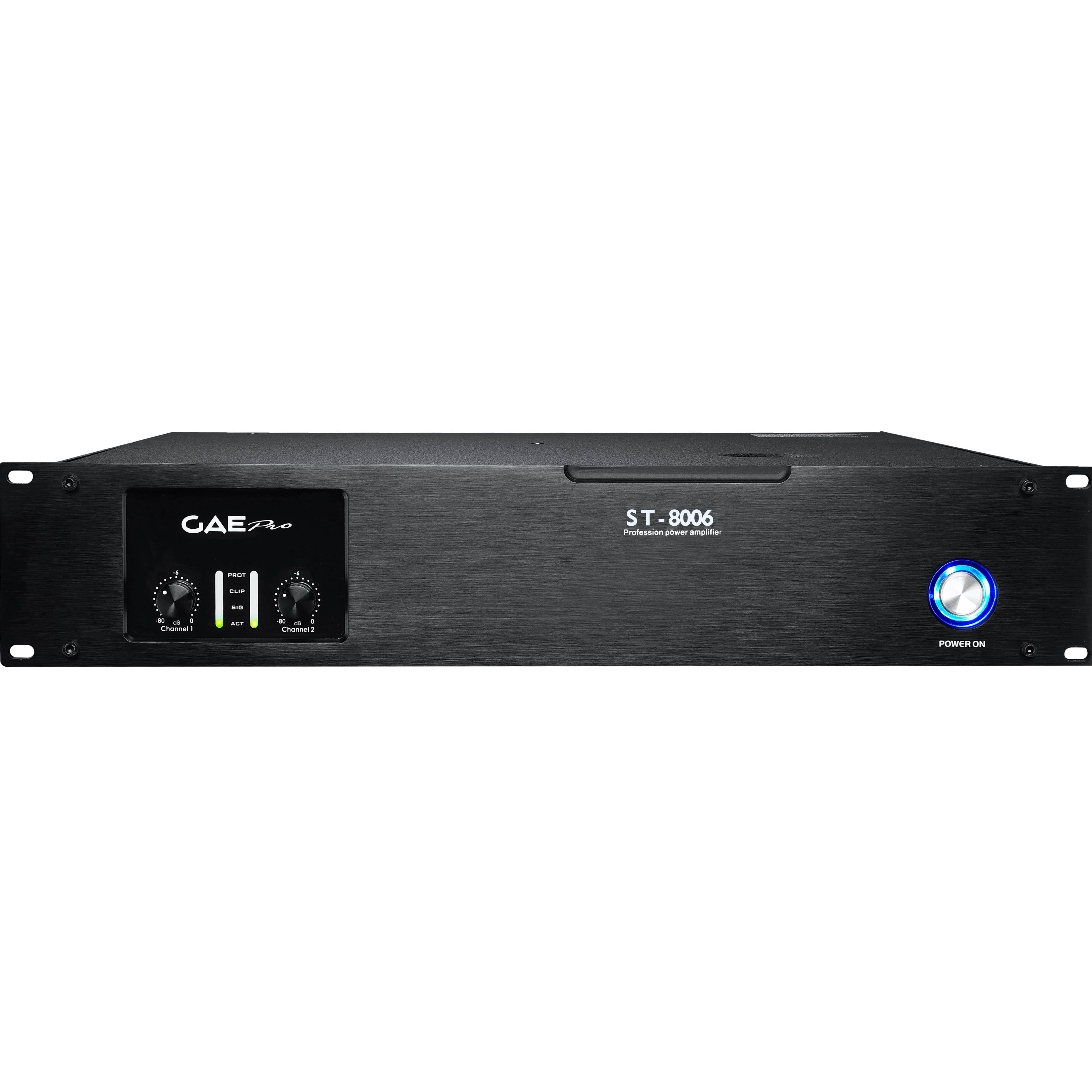

SERIES SPECIFICATION:ST-8006

8Ω Output Power/CH:2*600W

4Ω Output Power/CH:2*900W

8Ω Bridge Output Power:2*1800W

Frequecy Response:20Hz-20KHz±0.5dB

THD+N(20Hz-20KHz):<0.05%

Slew Rate:30V/μs

Damping Factor（8Ω，20Hz1KHz）:400

Volatage Gain (rated power@8Ω):38.2dB

Signal to Noise Ratio:>100dB

Cross Talk(20Hz-20KHz):>70dB

Input Sensiivity (8Ω):  0.775V

Input Impedance :20KΩbalance/10kΩunbalance

CoolingTwo variable speed fans,rear-to-front air flow

Connectors(each channel)

Input:XLR

Output:Speakon or connector

Controls

Front:AC switch,Ch1 and Ch2 gain knobs

Rear:Stereo/Paralle/Bridge switch

Indicators

Front:POWER-Green LED,SIGNAL-Green LED,

CLIP-Orange LED,PROT-Red LED

Amplifier Protection

shortcircuit,thermal,overload,cliplimiter,DCvoltage, softstar,

ultrasonic and RF protection

Net Weight/Gross Weight: 16.5Kg/20.5Kg

Dimensions: 483mm*462mm*89mm

Packing Dimensions:     610mm*575mm*170mm

Power Requirements:220V/50Hz
